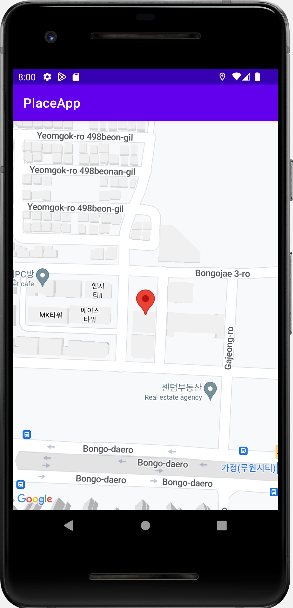

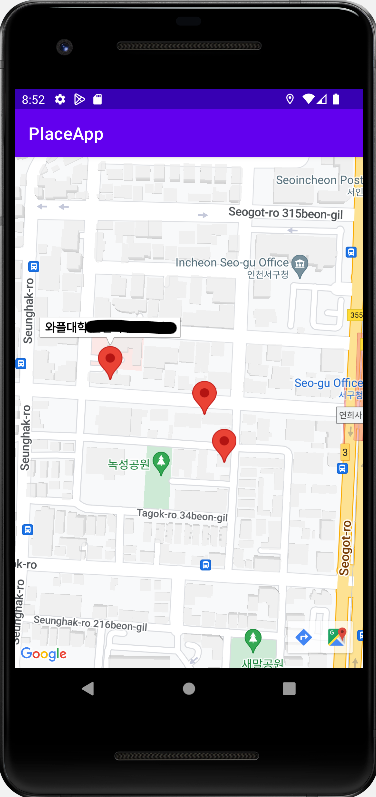

키워드 입력하면 내 주변에 있는 장소 검색하여 지도 띄워주는 앱(app) 만들기 (nearbysearch API 사용)

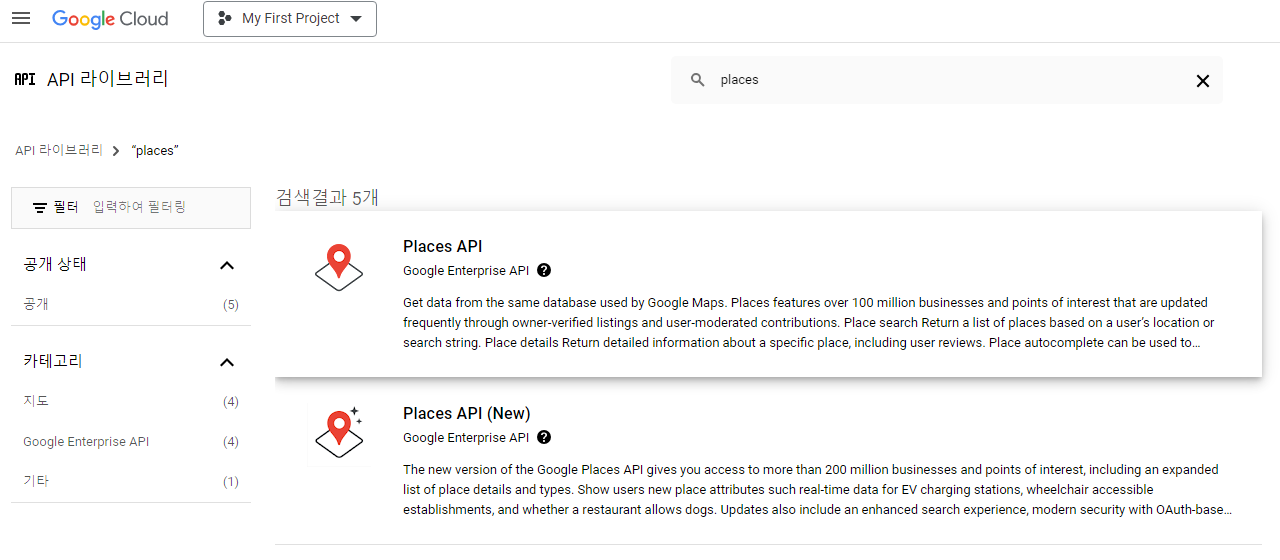

https://developers.google.com/maps/documentation/places/web-service/search-nearby?hl=ko&_gl=1*tngnvs*_up*MQ..*_ga*ODgyOTU1NjIwLjE3MTg3NzQ1MjI.*_ga_NRWSTWS78N*MTcxODc3NDUyMi4xLjAuMTcxODc3NDUyMi4wLjAuMA..

주변 지역 검색  |  Places API  |  Google for Developers

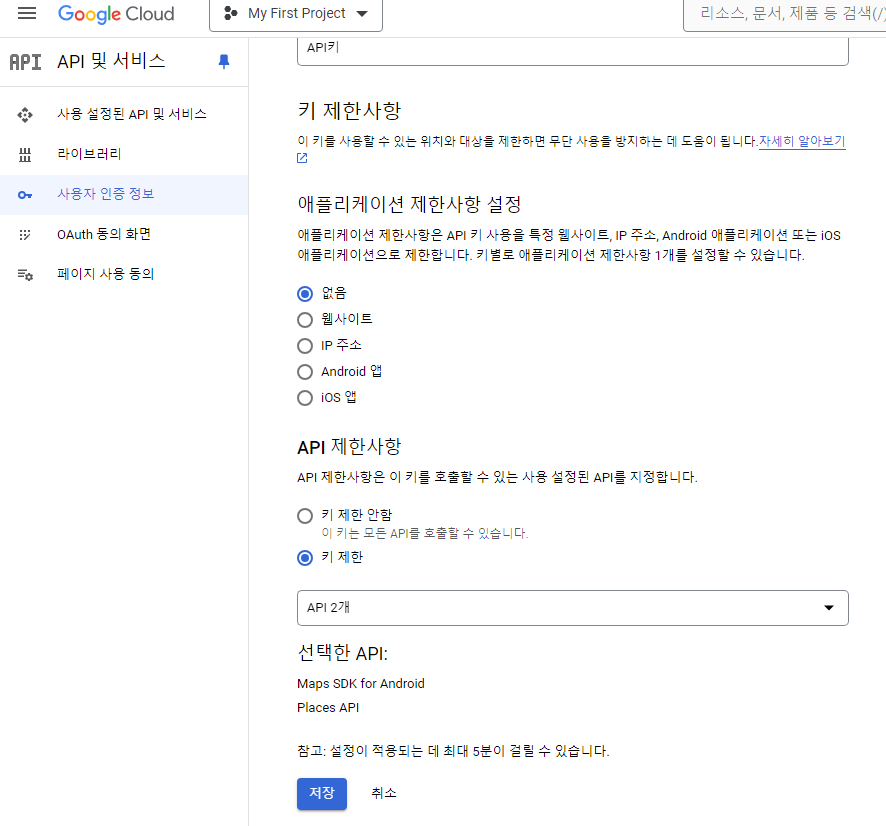

저장 후, 키 복사하기









환경설정하기



https://codebunny99.tistory.com/179

안드로이드 스튜디오에서 구글 맵 사용하기







Manifest에서 작성해주기

<uses-permission android:name="android.permission.INTERNET"/>

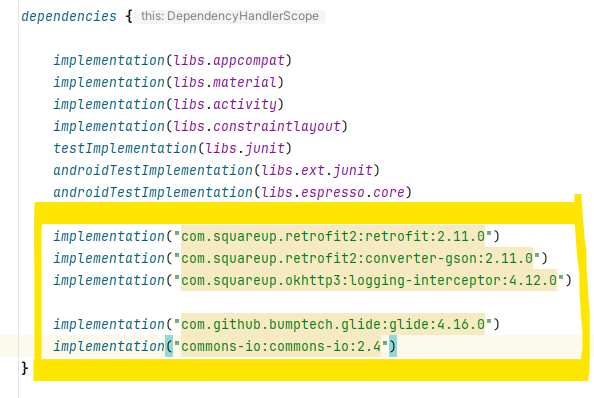

라이브러리 설치



build.gradle.kts(:app) 에서, 맨 아랫줄 작성.



    implementation("com.squareup.retrofit2:retrofit:2.11.0")
    implementation("com.squareup.retrofit2:converter-gson:2.11.0")
    implementation("com.squareup.okhttp3:logging-interceptor:4.12.0")

    implementation("com.github.bumptech.glide:glide:4.16.0")
    implementation("commons-io:commons-io:2.4")

















config, NetworkClient 작성하기



config

package com.~.placeapp.config;

public class Config {
    public static final String DOMAIN = "https://maps.googleapis.com";

    public static final String SP_NAME = "places_app";

    public static final String PLACE_API_KEY = "자신의 API 키 입력";

}





NetworkClient

package com.~.placeapp.api;

import android.content.Context;

import com.~.placeapp.config.Config;

import java.util.concurrent.TimeUnit;

import okhttp3.OkHttpClient;
import okhttp3.logging.HttpLoggingInterceptor;
import retrofit2.Retrofit;
import retrofit2.converter.gson.GsonConverterFactory;

public class NetworkClient {
    public static Retrofit retrofit;

    public static Retrofit getRetrofitClient(Context context){
        if(retrofit == null){
            // 통신 로그 확인할때 필요한 코드
            HttpLoggingInterceptor loggingInterceptor =
                    new HttpLoggingInterceptor();
            loggingInterceptor.setLevel(HttpLoggingInterceptor.Level.BODY);

            // 네트워크 연결관련 코드
            OkHttpClient httpClient = new OkHttpClient.Builder()
                    .connectTimeout(1, TimeUnit.MINUTES)
                    .readTimeout(1, TimeUnit.MINUTES)
                    .writeTimeout(1, TimeUnit.MINUTES)
                    .addInterceptor(loggingInterceptor)
                    .build();
            // 네트워크로 데이터를 보내고 받는
            // 레트로핏 라이브러리 관련 코드
            retrofit = new Retrofit.Builder()
                    .baseUrl(Config.DOMAIN)
                    .client(httpClient)
                    .addConverterFactory(GsonConverterFactory.create())
                    .build();
        }
        return retrofit;
    }
}



PlaceApi

package com.~.placeapp.api;

import com.~.placeapp.model.PlaceList;

import retrofit2.Call;
import retrofit2.http.GET;
import retrofit2.http.Query;

public interface PlaceApi {

    //키워드 기반으로 장소 가져오는 API
    @GET("/maps/api/place/nearbysearch/json")
    Call<PlaceList> getPlaceList(@Query("language") String language,
                                 @Query("location") String location,
                                 @Query("radius") int radius,
                                 @Query("key") String key,
                                 @Query("keyword") String keyword);

}

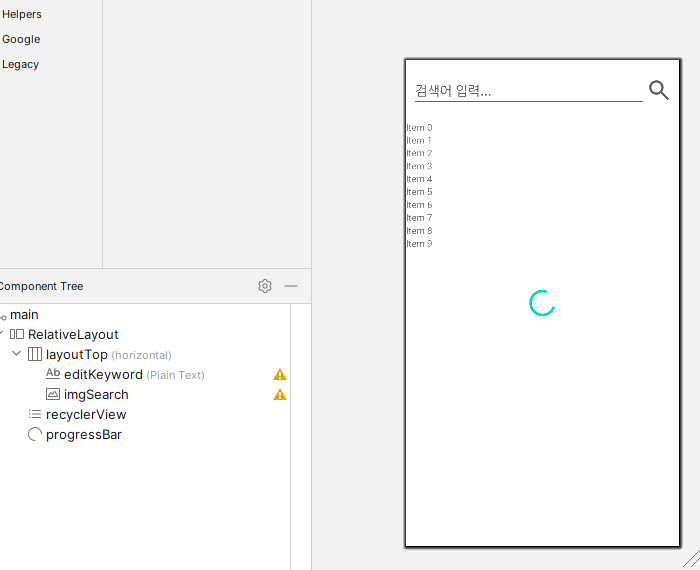

activity_main 화면작성



<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

        <LinearLayout
            android:id="@+id/layoutTop"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_alignParentTop="true"
            android:layout_marginLeft="10dp"
            android:layout_marginTop="20dp"
            android:layout_marginRight="10dp"
            android:layout_marginBottom="20dp"
            android:orientation="horizontal">

            <EditText
                android:id="@+id/editKeyword"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:ems="10"
                android:hint="검색어 입력..."
                android:inputType="text"
                android:textSize="20sp" />

            <ImageView
                android:id="@+id/imgSearch"
                android:layout_width="40dp"
                android:layout_height="match_parent"
                app:srcCompat="@drawable/search_24dp" />

        </LinearLayout>

        <androidx.recyclerview.widget.RecyclerView
            android:id="@+id/recyclerView"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_below="@id/layoutTop" />

        <ProgressBar
            android:id="@+id/progressBar"
            style="?android:attr/progressBarStyle"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_centerInParent="true" />
    </RelativeLayout>
</androidx.constraintlayout.widget.ConstraintLayout>

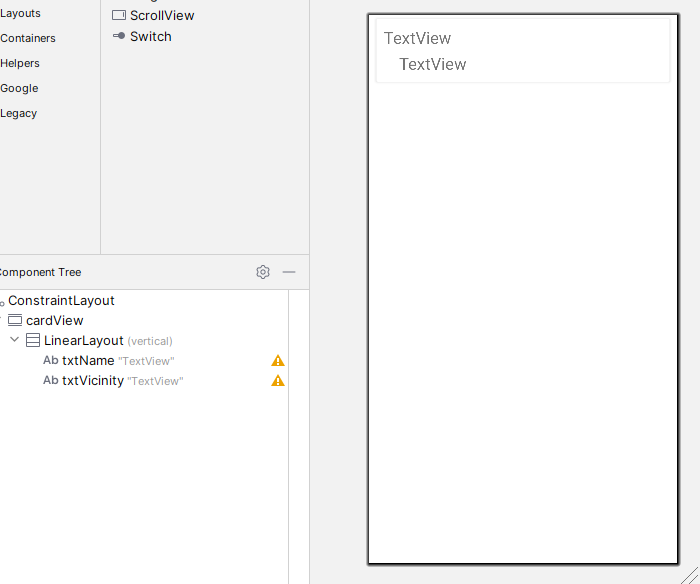

layout에 place_row.xml 추가하여 리사이클러뷰에 들어갈 카드뷰 작성



<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <androidx.cardview.widget.CardView
        android:id="@+id/cardView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="10dp"
        android:layout_marginTop="5dp"
        android:layout_marginEnd="10dp"
        android:layout_marginBottom="5dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_margin="10dp"
            android:orientation="vertical">

            <TextView
                android:id="@+id/txtName"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="TextView"
                android:textSize="22sp" />

            <TextView
                android:id="@+id/txtVicinity"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_marginLeft="20dp"
                android:layout_marginTop="5dp"
                android:text="TextView"
                android:textSize="22sp" />
        </LinearLayout>
    </androidx.cardview.widget.CardView>
</androidx.constraintlayout.widget.ConstraintLayout>

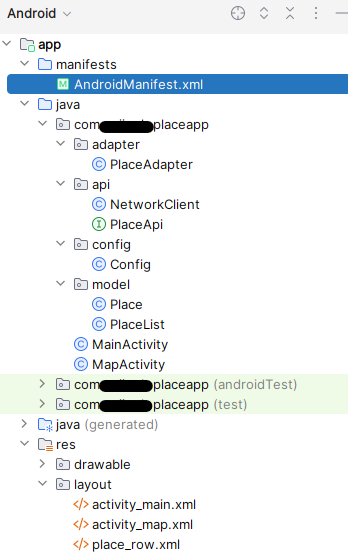

model 패키지 작성



Place 클래스

package com.~.placeapp.model;

import com.google.gson.JsonArray;

public class Place implements Serializable {

    public String name;
    public String vicinity;
    public Geometry geometry;


    // 이너 클래스 inner class
    public class Geometry implements Serializable {

        public Location location;

        // 이너 클래스 inner class
        public class Location implements Serializable {
            public double lat;
            public double lng;
        }

    }

}



PlaceList

package com.~.placeapp.model;

import java.util.ArrayList;

public class PlaceList {

    public ArrayList<Place> results;

}









PlaceAdapter



package com.~.placeapp.adapter;

import android.content.Context;
import android.content.Intent;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.cardview.widget.CardView;
import androidx.recyclerview.widget.RecyclerView;

import com.~.placeapp.MapActivity;
import com.~.placeapp.R;
import com.~.placeapp.model.Place;

import java.util.ArrayList;

public class PlaceAdapter extends RecyclerView.Adapter<PlaceAdapter.ViewHolder> {

    Context context;
    ArrayList<Place> placeArrayList;

    public PlaceAdapter(Context context, ArrayList<Place> placeList) {
        this.context = context;
        this.placeArrayList = placeList; // 여기서 placeArrayList에 올바르게 할당합니다.
    }

    @NonNull
    @Override
    public ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.place_row, parent, false);
        return new ViewHolder(view);
    }

    @Override
    public void onBindViewHolder(@NonNull ViewHolder holder, int position) {
        Place place = placeArrayList.get(position);

        if (place.name == null) {
            holder.txtName.setText("상점명 없음");
        } else {
            holder.txtName.setText(place.name);
        }

        if (place.vicinity == null) {
            holder.txtVicinity.setText("주소 없음");
        } else {
            holder.txtVicinity.setText(place.vicinity);
        }
    }

    @Override
    public int getItemCount() {
        return placeArrayList != null ? placeArrayList.size() : 0;
    }

    public class ViewHolder extends RecyclerView.ViewHolder {

        TextView txtName;
        TextView txtVicinity;
        CardView cardView;

        public ViewHolder(@NonNull View itemView) {
            super(itemView);
            txtName = itemView.findViewById(R.id.txtName);
            txtVicinity = itemView.findViewById(R.id.txtVicinity);
            cardView = itemView.findViewById(R.id.cardView);

            cardView.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    Intent intent = new Intent(context, MapActivity.class);
                    int index = getAdapterPosition();
                    if (index != RecyclerView.NO_POSITION) {
                        Place place = placeArrayList.get(index);
                        intent.putExtra("place", place);
                        context.startActivity(intent);
                    }
                }
            });
        }
    }
}









MainActivity

package com.~.placeapp;

import android.Manifest;
import android.content.pm.PackageManager;
import android.location.Location;
import android.location.LocationListener;
import android.location.LocationManager;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.ProgressBar;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.recyclerview.widget.LinearLayoutManager;
import androidx.recyclerview.widget.RecyclerView;

import com.~.placeapp.adapter.PlaceAdapter;
import com.~.placeapp.api.NetworkClient;
import com.~.placeapp.api.PlaceApi;
import com.~.placeapp.config.Config;
import com.~.placeapp.model.Place;
import com.~.placeapp.model.PlaceList;

import java.util.ArrayList;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;
import retrofit2.Retrofit;


public class MainActivity extends AppCompatActivity {

    LocationListener locationListener;
    LocationManager locationManager;

    EditText editKeyword;
    ImageView imgSearch;
    ProgressBar progressBar;
    RecyclerView recyclerView;
    ArrayList<Place> placeArrayList = new ArrayList<>();
    PlaceAdapter adapter;

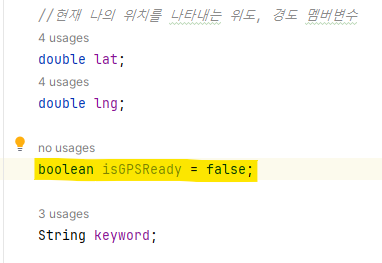

    //현재 나의 위치를 나타내는 위도, 경도 멤버변수
    double lat;
    double lng;

    String keyword;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        editKeyword = findViewById(R.id.editKeyword);
        imgSearch = findViewById(R.id.imgSearch);
        progressBar = findViewById(R.id.progressBar);
        recyclerView = findViewById(R.id.recyclerView);
        recyclerView.setHasFixedSize(true);
        recyclerView.setLayoutManager(new LinearLayoutManager(MainActivity.this));

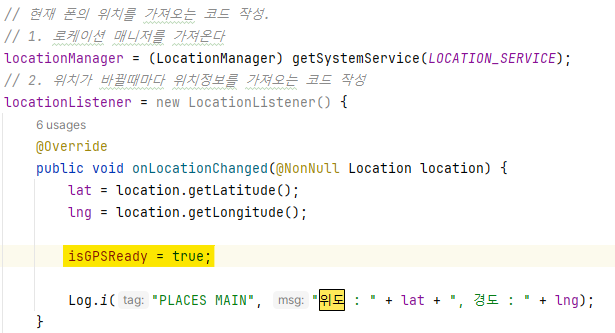

        // 현재 폰의 위치를 가져오는 코드 작성.
        // 1. 로케이션 매니저를 가져온다
        locationManager = (LocationManager) getSystemService(LOCATION_SERVICE);
        // 2. 위치가 바뀔때마다 위치정보를 가져오는 코드 작성
        locationListener = new LocationListener() {
            @Override
            public void onLocationChanged(@NonNull Location location) {
                lat = location.getLatitude();
                lng = location.getLongitude();

                Log.i("PLACES MAIN", "위도 : " + lat + ", 경도 : " + lng);
            }
        };

        // 3. 로케이션 매니저에, 우리가 작성한 함수를 적용한다.
        if (ActivityCompat.checkSelfPermission(this, android.Manifest.permission.ACCESS_FINE_LOCATION) != PackageManager.PERMISSION_GRANTED
                && ActivityCompat.checkSelfPermission(this, android.Manifest.permission.ACCESS_COARSE_LOCATION) != PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(MainActivity.this,
                    new String[]{Manifest.permission.ACCESS_FINE_LOCATION,
                            Manifest.permission.ACCESS_COARSE_LOCATION},
                    100);
            return;
        }

        locationManager.requestLocationUpdates(LocationManager.GPS_PROVIDER,
                3000,
                -1,
                locationListener);  //minTimeMs초마다 한번씩 또는 minDistanceM미터가 변경될 때마다 한번씩 실행 시킨다.

        progressBar.setVisibility(View.GONE);

        imgSearch.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                keyword = editKeyword.getText().toString().trim();

                if(keyword.isEmpty()){
                    return;
                }

                getNetworkData();

            }
        });

    }

    private void getNetworkData() {

        progressBar.setVisibility(View.VISIBLE);

        placeArrayList.clear();

        //네트워크 호출
        Retrofit retrofit = NetworkClient.getRetrofitClient(MainActivity.this);

        PlaceApi api = retrofit.create(PlaceApi.class);

        Call<PlaceList> call = api.getPlaceList("ko", lat+","+lng, 2000, Config.PLACE_API_KEY, keyword);

        call.enqueue(new Callback<PlaceList>() {
            @Override
            public void onResponse(Call<PlaceList> call, Response<PlaceList> response) {
                progressBar.setVisibility(View.GONE);

                if(response.isSuccessful()){
                    PlaceList placeList = response.body();
                    placeArrayList.addAll(placeList.results);

                    adapter = new PlaceAdapter(MainActivity.this, placeArrayList);
                    recyclerView.setAdapter(adapter);

                } else {

                }
            }

            @Override
            public void onFailure(Call<PlaceList> call, Throwable throwable) {
                progressBar.setVisibility(View.GONE);
            }
        });

    }


    @Override
    public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults);

        if (requestCode == 100) { // 요청 코드가 100일 때만 처리
            // grantResults 배열의 길이를 확인하여 IndexOutOfBoundsException 방지
            if (grantResults.length > 1 && grantResults[0] == PackageManager.PERMISSION_GRANTED && grantResults[1] == PackageManager.PERMISSION_GRANTED) {
                // 위치 권한이 승인되었을 때
                if (ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_FINE_LOCATION) == PackageManager.PERMISSION_GRANTED
                        && ActivityCompat.checkSelfPermission(this, Manifest.permission.ACCESS_COARSE_LOCATION) == PackageManager.PERMISSION_GRANTED) {

                    if (locationManager != null) { // locationManager가 null이 아닌지 확인
                        locationManager.requestLocationUpdates(LocationManager.GPS_PROVIDER,
                                3000,
                                -1,
                                locationListener); // minTimeMs초마다 한 번씩 또는 minDistanceM미터가 변경될 때마다 한 번씩 실행
                    }
                }
            }
        }
    }

}











카드뷰 누르면 지도 뜨는 MapActivity 만들기



activity_map.xml : 지도로 한다.

<?xml version="1.0" encoding="utf-8"?>
<fragment xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:map="http://schemas.android.com/apk/res-auto"
    android:name="com.google.android.gms.maps.SupportMapFragment"
    android:id="@+id/map"
    android:layout_width="match_parent"
    android:layout_height="match_parent"/>





MapActivity.java

package com.~.placeapp;

import android.os.Bundle;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;
import com.yujinoh.placeapp.model.Place;


public class MapActivity extends AppCompatActivity {

    Place place;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_map);

        place = (Place) getIntent().getSerializableExtra("place");

        SupportMapFragment mapFragment =
                (SupportMapFragment) getSupportFragmentManager().findFragmentById(R.id.map);

        mapFragment.getMapAsync(new OnMapReadyCallback() {
            @Override
            public void onMapReady(@NonNull GoogleMap googleMap) {

                // 위에서 받아온 place 객체에 저장되어 있는 위도, 경도 꺼내서
                LatLng latLng = new LatLng(place.geometry.location.lat, place.geometry.location.lng);

                // 1. 지도의 위치를 이 위도, 경도를 중심으로 해서 이동시킨다.
                googleMap.moveCamera(CameraUpdateFactory.newLatLngZoom(latLng, 17));

                // 2. 마커로 표시한다.
                MarkerOptions markerOptions = new MarkerOptions();
                if(place.name == null){
                    markerOptions.position(latLng).title("상점명 없음");
                }else{
                    markerOptions.position(latLng).title(place.name);
                }
                googleMap.addMarker(markerOptions);

            }
        });

    }
}







클릭하면,















액션바의 지도 아이콘 클릭하면, 검색한 곳을 모두 지도로 마커 표시하게 하기

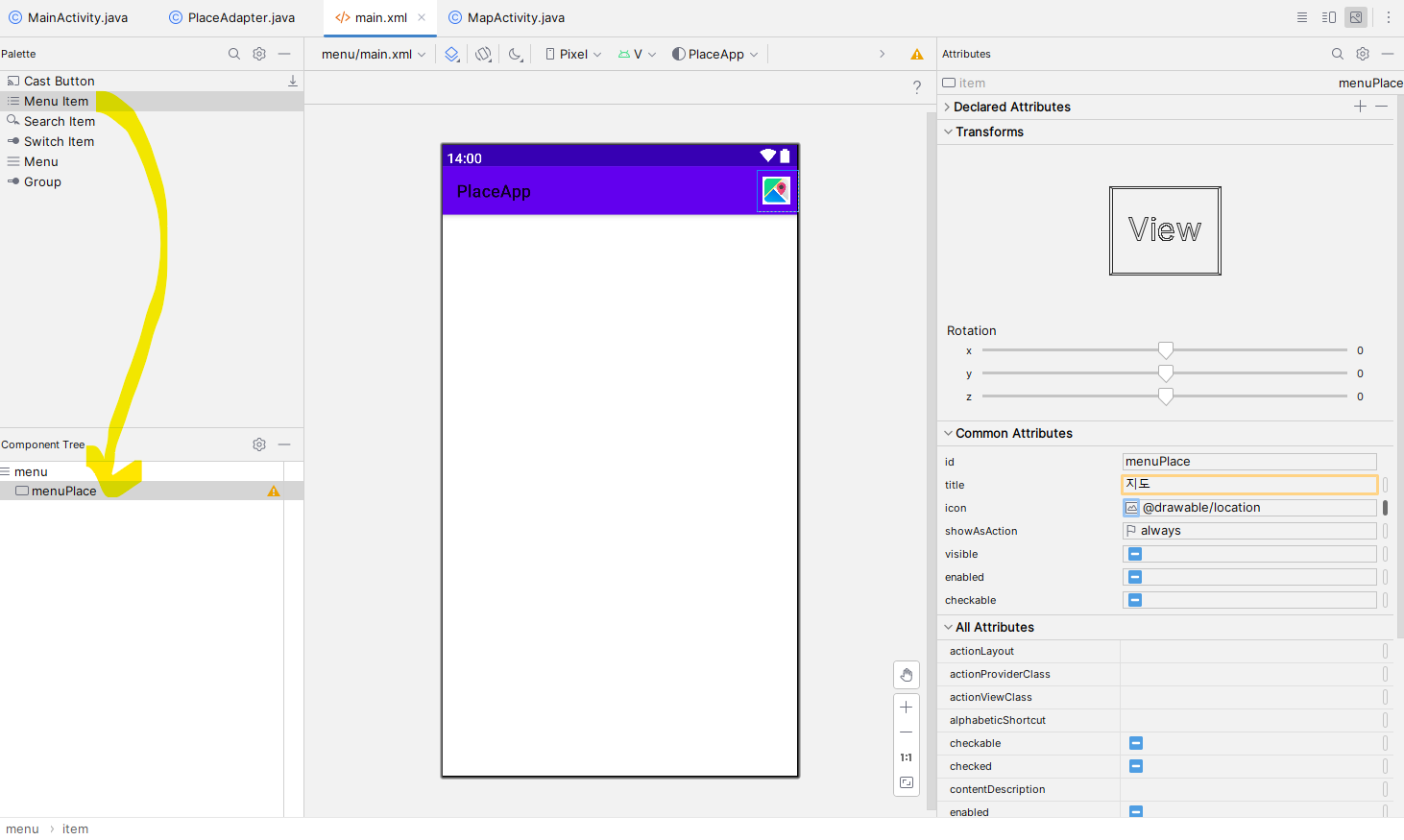

메뉴를 만든다.













Activity 만들기 : PlaceActivity로 하였다.



activity_place.xml 화면 코드 : 지도로 한다.

<?xml version="1.0" encoding="utf-8"?>
<fragment xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:map="http://schemas.android.com/apk/res-auto"
    android:name="com.google.android.gms.maps.SupportMapFragment"
    android:id="@+id/map"
    android:layout_width="match_parent"
    android:layout_height="match_parent"/>







PlaceActivity 작성하기

package com.~.placeapp;

import android.os.Bundle;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;
import com.yujinoh.placeapp.model.Place;

import java.util.ArrayList;


public class PlaceActivity extends AppCompatActivity {

    Place place;
    ArrayList<Place> placeArrayList;
    double lat;
    double lng;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_place);

        // 데이터 받아오기
        placeArrayList = (ArrayList<Place>) getIntent().getSerializableExtra("placeArrayList");
        lat = getIntent().getDoubleExtra("lat", 0);
        lng = getIntent().getDoubleExtra("lng", 0);


        SupportMapFragment mapFragment =
                (SupportMapFragment) getSupportFragmentManager().findFragmentById(R.id.map);

        mapFragment.getMapAsync(new OnMapReadyCallback() {
            @Override
            public void onMapReady(@NonNull GoogleMap googleMap) {

                // 1. 위에서 받아온 place 객체에 저장되어 있는 위도, 경도 꺼내서
                LatLng myLocation = new LatLng(lat, lng);
                googleMap.moveCamera(CameraUpdateFactory.newLatLngZoom(myLocation, 17));

                // 2. 위에서 받은 어레이리스트에 들어있는 플레이스를 반복문해서 마커로 만든다.

                for( Place place : placeArrayList ){
                    LatLng latLng = new LatLng(place.geometry.location.lat, place.geometry.location.lng);
                    MarkerOptions markerOptions = new MarkerOptions();
                    markerOptions.position(latLng).title(place.name);
                    googleMap.addMarker(markerOptions);
                }

            }
        });


    }
}

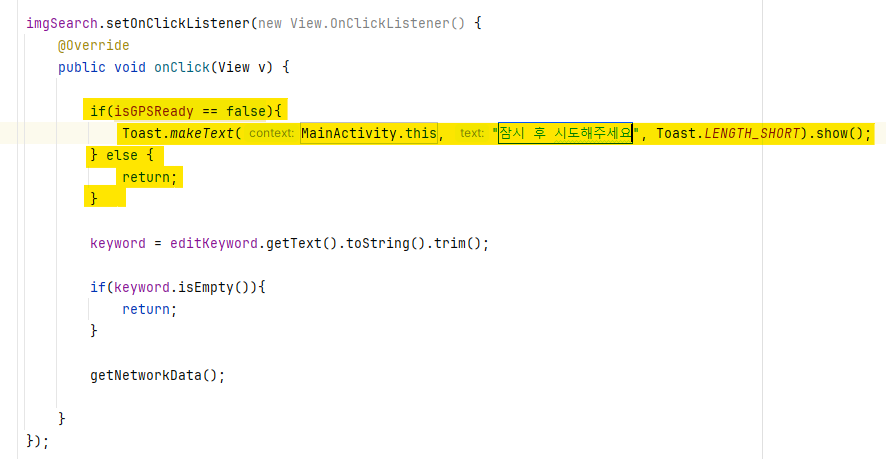

GPS가 준비되어있지 않았는데, 지도를 누르면 에러가 발생할 수 있다.



이러한 오류를 잡기위해 MainActivity에  아래와 같이 작성한다.







(1) 변수 설정











(2) 아직 준비가 안됐을 때, 팝업창을 띄운다.











(3) 준비가 되었을 때에는 잘 동작하도록 true로 한다
