- 주어진 각 구간 내에 위치하는 관측치 수를 보여주는 그래프이다
- 빈도 분포를 보여주는 그래프이다
- 일정한 해당 구간에 포함되는 데이터의 분포를 알 수 있다
- 일정 구간을 bin이라고 하며 구간이 여러개면 복수형으로 bins라고 한다
- 히스토그램은 똑같은 데이터를 가지고 bin을 어떻게 설정하느냐에 따라서 차트모양이 달라지며 해석이 달라진다
df
id | species | hp | attack | defense | speed | |
0 | 1 | bulbasaur | 45 | 49 | 49 | 45 |
1 | 2 | ivysaur | 60 | 62 | 63 | 60 |
2 | 3 | venusaur | 80 | 82 | 83 | 80 |
3 | 4 | charmander | 39 | 52 | 43 | 65 |
4 | 5 | charmeleon | 58 | 64 | 58 | 80 |
... | ... | ... | ... | ... | ... | ... |
802 | 803 | poipole | 67 | 73 | 67 | 73 |
803 | 804 | naganadel | 73 | 73 | 73 | 121 |
804 | 805 | stakataka | 61 | 131 | 211 | 13 |
805 | 806 | blacephalon | 53 | 127 | 53 | 107 |
806 | 807 | zeraora | 88 | 112 | 75 | 143 |

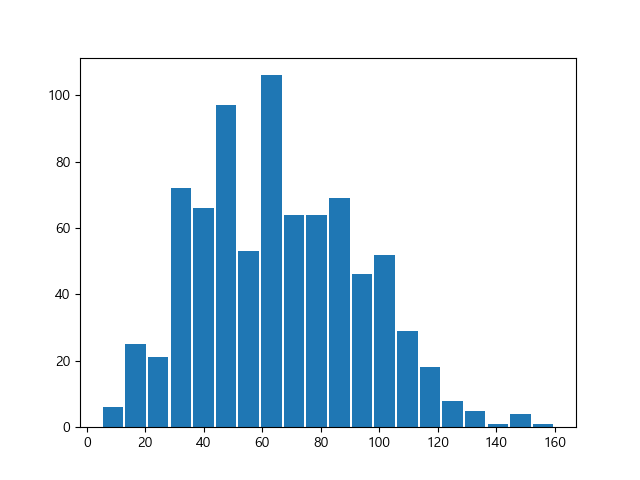

plt.hist(data=df,x='speed', rwidth=0.9, bins = 20)
plt.show()
# rwidth는 막대의 너비를 뜻하며, 0.9로 설정하면 막대의 폭이 전체 가로폭의 90%를 차지하게 된다
# bins의 개수는 기본이 10개 구간이다. 이 구간의 갯수를 설정할 수 있다
# 구간의 범위를 직접 설정하려면, 데이터의 최소값, 최대값을 알아야 한다
df['speed'].describe()
count 807.000000
mean 65.830235
std 27.736838
min 5.000000
25% 45.000000
50% 65.000000
75% 85.000000
max 160.000000
Name: speed, dtype: float64

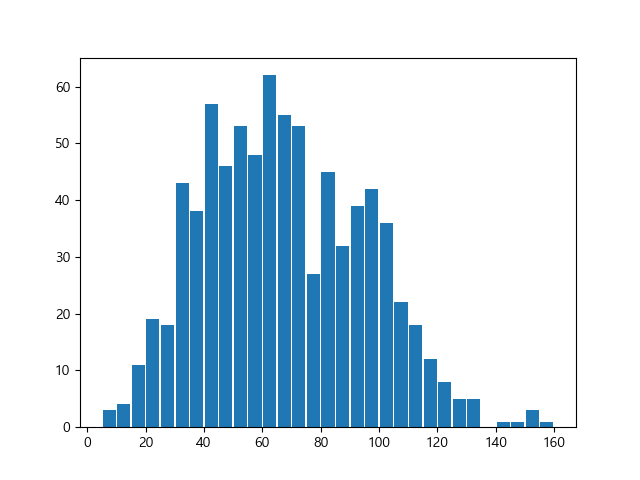

my_bins = np.arange(5,160+5,5)
plt.hist(data=df,x='speed', rwidth=0.9, bins = my_bins )
plt.savefig('hist2.png')
plt.show()

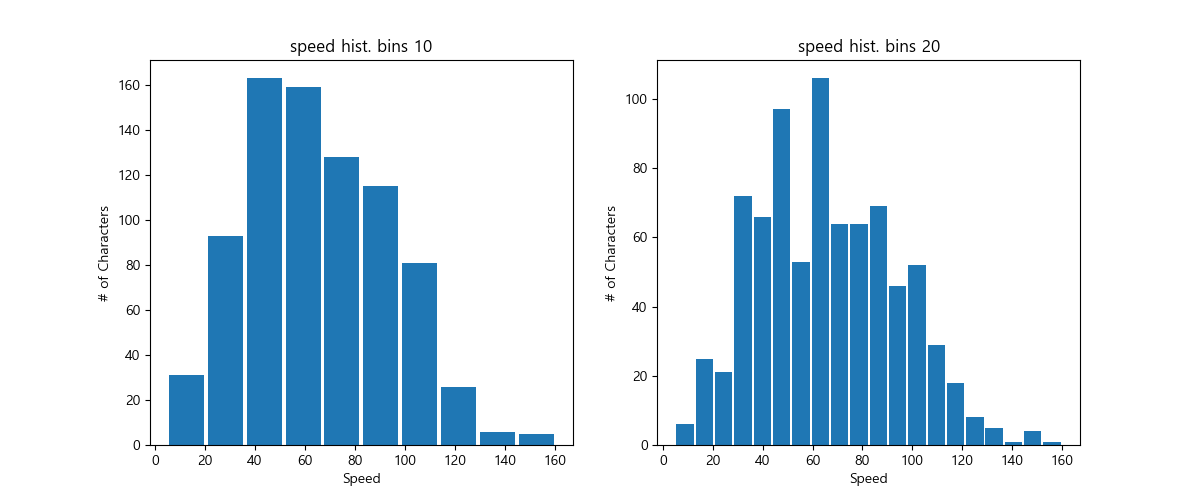

Subplots
-한번에 여러개의 그래프를 보여준다
plt.figure( figsize = (12, 5) , )
# figsize 매개변수는 그래프 전체의 총 사이즈를 조절할 수 있다.
# 두 그래프가 들어가므로 가로 사이즈를 넓게 하였다
plt.subplot(1, 2, 1)
plt.hist(data=df, x='speed', rwidth=0.9 )
plt.title('speed hist. bins 10')
plt.xlabel('Speed')
plt.ylabel('# of Characters')
plt.subplot(1, 2, 2)
plt.title('speed hist. bins 20')
plt.xlabel('Speed')
plt.ylabel('# of Characters')
plt.hist(data=df,x='speed', rwidth=0.9, bins = 20)
plt.show()
